ZX自吸式化工離心泵
聯系我們
手機站
ZX自吸離心泵
ZX系列自吸泵的優點：
ZX泵結構合理緊湊、操作方便快捷、運行平穩、維護簡單方便、工作效率高、使用壽命長，并有較強的自吸能力。管路不需安裝底閥，工作前只需保證泵體內儲有定量引液即可，因此簡化了管路系統，又改善了勞動條件，提高了工作效率。
臥式自吸離心泵型號意義
例如：50ZX12.5-50
50代表吸入口徑
ZX代表自吸泵
12．5代表流量（m3h）
50代表揚程
ZX不銹鋼自吸泵
ZX臥式自吸離心泵性能參數表
| 型號 | 流量Q | 揚程 (m) | 吸程 (m) | 轉速n (r/min) | 功率（KW） | ||
| (m3/h) | （L/S） | 軸功率 | 電機功率 | ||||
| 25ZX3.2-20 | 3.2 | 0.9 | 20 | 6.5 | 2900 | 0.46 | 0.75 |
| 25ZX3.2-32 | 3.2 | 0.9 | 32 | 6.5 | 2900 | 0.8 | 1.1 |
| 40ZX6.3-20 | 6.3 | 1.8 | 20 | 6.5 | 2900 | 0.87 | 11 |
| 40ZX10-40 | 10 | 2.8 | 40 | 6.5 | 2900 | 2.7 | 4 |
| 50ZX15-12 | 15 | 4.2 | 12 | 6.5 | 2900 | 1.1 | 1.5 |
| 50ZX18-20 | 18 | 5 | 20 | 6.5 | 2900 | 1.8 | 2.2 |
| 50ZX12.5-32 | 12.5 | 3.5 | 32 | 6.5 | 2900 | 2.1 | 3 |
| 50ZX20-30 | 20 | 5.6 | 30 | 6.5 | 2900 | 2.6 | 4 |
| 50ZX14-35 | 14 | 3.9 | 35 | 6.5 | 2900 | 2.7 | 4 |
| 50ZX10-40 | 10 | 2.8 | 40 | 6.5 | 2900 | 2.7 | 4 |
| 50ZX12.5-50 | 12.5 | 3.5 | 50 | 6.5 | 2900 | 4.3 | 5.5 |
| 50ZX15-60 | 15 | 4.2 | 60 | 6.5 | 2900 | 6.2 | 7.5 |
| 50ZX20-75 | 20 | 5.6 | 75 | 6.5 | 2900 | 9.8 | 11 |
| 65ZX30-15 | 30 | 8.3 | 15 | 6.5 | 2900 | 1.9 | 3 |
| 65ZX25-32 | 25 | 6.9 | 32 | 6 | 2900 | 4.4 | 5.5 |
| 80ZX35-13 | 35 | 9.7 | 13 | 6 | 2900 | 1.9 | 3 |
| 80ZX43-17 | 43 | 12 | 17 | 6 | 2900 | 3.1 | 4 |
| 80ZX40-22 | 40 | 11.1 | 22 | 6 | 2900 | 4.4 | 5.5 |
| 80ZX50-25 | 50 | 13.9 | 25 | 6 | 2900 | 5.2 | 7.5 |
| 80ZX50-32 | 50 | 13.9 | 32 | 6 | 2900 | 6.8 | 7.5 |
| 80ZX60-55 | 60 | 16.7 | 55 | 6 | 2900 | 15 | 18.5 |
| 80ZX60-70 | 60 | 16.7 | 70 | 6 | 2900 | 20.1 | 22 |
| 100ZX100-20 | 100 | 27.8 | 20 | 6 | 2900 | 7.8 | 11 |
| 100ZX100-40 | 100 | 27.8 | 40 | 6 | 2900 | 16.3 | 22 |
| 100ZX100-65 | 100 | 27.8 | 65 | 6 | 2900 | 27.7 | 30 |
| 100ZX70-75 | 70 | 19.4 | 75 | 6 | 2900 | 24.2 | 30 |
| 150ZX170-55 | 170 | 47.2 | 55 | 5 | 2900 | 39.2 | 45 |
| 150ZX170-65 | 170 | 47.2 | 65 | 5 | 2900 | 46.3 | 55 |
| 150ZX160-80 | 160 | 44.4 | 80 | 5 | 2900 | 53.6 | 55 |
| 200ZX400-32 | 400 | 111.1 | 32 | 5 | 1450 | 52.1 | 55 |
| 200ZX280-63 | 280 | 77.8 | 63 | 5 | 1450 | 73.9 | 90 |
| 200ZX350-65 | 350 | 97.2 | 65 | 5 | 1450 | 97.2 | 110 |
| 250ZX550-32 | 550 | 152.8 | 32 | 5 | 1450 | 72.3 | 75 |
| 250ZX400-50 | 400 | 111.1 | 50 | 5 | 1450 | 80 | 90 |
| 250ZX450-55 | 450 | 125 | 55 | 5 | 1450 | 102.1 | 110 |
| 250ZX400-75 | 400 | 111.1 | 75 | 5 | 1450 | 125.6 | 132 |
| 300ZX600-32 | 600 | 166.7 | 32 | 5 | 1450 | 79.2 | 90 |
| 300ZX500-50 | 500 | 138.9 | 50 | 5 | 1450 | 104.6 | 110 |
| 300ZX550-55 | 550 | 152.8 | 55 | 5 | 1450 | 117.6 | 132 |

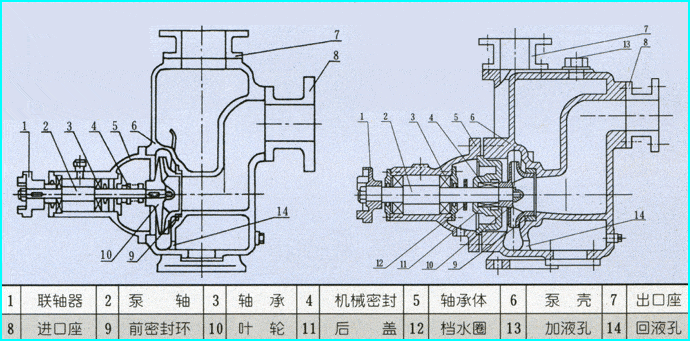

結構圖

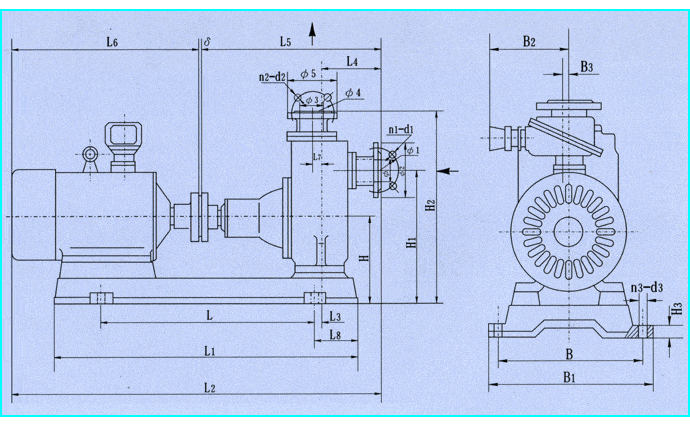

安裝尺寸圖：
ZX型臥式自吸離心泵外形安裝尺寸表：
| 型號 | 流量Q | 揚程 (m) | 吸程 (m) | 自吸性能 (min/5m) | 轉速 (r/min) | 電機功率 | |
| (m3/h) | (L/s) | ||||||
| 25ZX3.2-20 | 3.2 | 0.9 | 20 | 6.5 | 1.9 | 2900 | 0.75 |
| 25ZX3.2-32 | 3.2 | 0.9 | 32 | 6.5 | 1.8 | 2900 | 1.1 |
| 40ZX6.3-20 | 6.3 | 1.8 | 20 | 6.5 | 1.9 | 2900 | 1.1 |
| 40ZX10-40 | 10 | 2.8 | 40 | 6.5 | 1.5 | 2900 | 4 |
| 50ZX15-12 | 15 | 4.2 | 12 | 6.5 | 2.4 | 2900 | 1.5 |
| 50ZX18-20 | 18 | 5 | 20 | 6.5 | 1.9 | 2900 | 2.2 |
| 50ZX12.5-32 | 12.5 | 3.5 | 32 | 6.5 | 1.5 | 2900 | 3 |
| 50ZX20-30 | 20 | 5.6 | 30 | 6.5 | 1.5 | 2900 | 4 |
| 50ZX14-35 | 14 | 3.9 | 35 | 6.5 | 1.5 | 2900 | 4 |
| 50ZX10-40 | 10 | 2.8 | 40 | 6.5 | 1.5 | 2900 | 4 |
| 50ZX12.5-50 | 12.5 | 3.5 | 50 | 6.5 | 1.4 | 2900 | 5.5 |
| 50ZXZX15-60 | 15 | 4.2 | 60 | 6.5 | 1.3 | 2900 | 7.5 |
| 50ZX20-7.5 | 20 | 5.6 | 7.5 | 6.5 | 1.3 | 2900 | 11 |
| 65ZX30-15 | 30 | 8.3 | 15 | 6.5 | 2 | 2900 | 3 |
| 65ZX25-32 | 25 | 6.9 | 32 | 6 | 1.5 | 2900 | 5.5 |
